More than just a lift, the Stiltz Trio Home Elevator brings every floor within reach
The Trio is our larger, wheelchair-friendly homelift designed to carry a standard wheelchair or up to three people. Its freestanding, shaftless design offers flexible placement with a compact under 15 sq. ft. footprint, installs in about 1–2 days with minimal building work, and is available with an optional Thru-Car for straight-through entry/exit.
It restores easy, comfortable access to every level so you can stay in the home you love.
Stiltz Trio Wheelchair Lift Specifications
- Finish: Light grey or white
- Half-Height Door: The door is interlocked and matches the finish of the elevator.

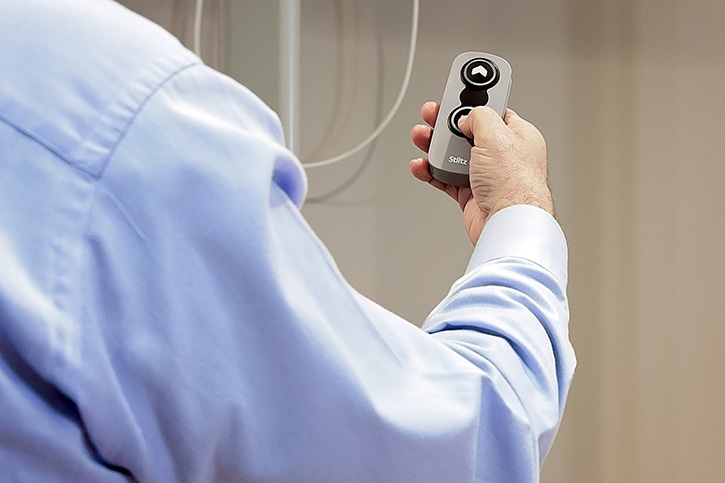

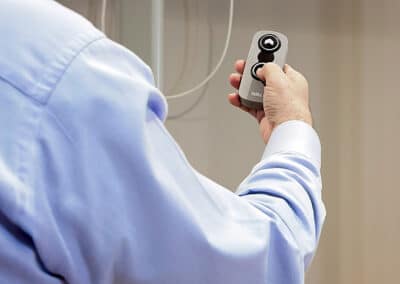

- 2 x Remote Controls: Call and send the elevator remotely; also, use it to move heavy
or awkward items between floors. - Two-Year Parts Warranty: All Stiltz Elevators carry a standard 24 months parts warranty.
- Internal LED Downlights: Programmed to turn when the user has called or entered the elevator; will remain on for the entire journey.
- Battery Back-Up System If there is a power outage while using the elevator, it can be driven to the lower level of the home and will then wait until the power comes back on to resume normal service.
- Half-Height Light Curtain: Projects the opening above the half-door from obstructions; the lift will not move until the obstruction has been removed and the light curtain is clear.
- Interior Telephone: Help is just a phone call away. Every lift comes standard with a landline phone; a cell phone is available as an option.
- Fold-Down Seat: A stylish molded plastic seat is an option; simply lift the seat out of the way when not in use.
- Interior Grab Rail: Offers increased security for the occupants of the elevator.
- Full-Height Door: An interlocked door that replaces the half-height door option.
- Half Height Light Curtain: An obstruction sensor is situated at the entrance of our elevators. If this barrier is crossed at any time, the elevator will immediately stop.
- Safety Lid Cover: This crucial feature covers the aperture in the floor when the elevator is in the downstairs position. It is strong enough to stand on, and you can place your original flooring on top to blend in.
- Key Switch Operation: This feature allows the owner to lock out the elevator if the need arises. This is commonly used when going away on holiday or when the grandchildren are around.
- Top & Bottom Safety Pans: Using our obstruction sensors, a Stiltz elevator can detect objects above or below the elevator, causing it to immediately stop.
- Hold-To-Run Controls: Operating a Stiltz Elevator requires constant pressure to the controls. This allows the user to ‘drive’ the elevator and feel in total control.
- Weight Limit Sensors: The Trio Alta home elevator is limited to 500lbs. The elevator detects anything exceeding this limit and will not travel.
- Out Of Balance Sensors: Sensors will detect if the elevator is ever out of balance and prevent the unit from travelling.
- Fall Arrest Mechanism: This patented system prevents the car from falling in the unlikely event of the steel ropes going slack.
- Emergency Stop Button: This button is front and center for the user in the event of an emergency.
Stiltz elevators are simple in design but are technically very advanced. Here’s a deeper dive into more technical information about our Trio Alta wheelchair homelift.
| Drive | Roped drum, braked gear motor drive |
| Power Supply | Dedicated 220V AC line required, like most major appliances |
| Maximum Load | Max. 550 lbs* / 2-3 people or a full-sized wheelchair |
| Maximum Travel | Up to three floors, with a maximum of 236″ of travel; (230″ max recommended) |
| Entrance Security | Half height light curtain with obstruction sensor |
| Maximum Speed | 5.9 inches / second |
| Warranty | 2 year parts warranty |
| Rope Diameter | 6mm galvanized steel rope |
| Additional Sensors | Out of balance; overload; top / bottom obstruction |
| Lighting Type | 4 x 3w LED downlights |
| Landing Call Stations | 2 wireless remote controls |
| Installation | Typical installation takes two days after home modification is complete |
| Operation | Hold-to-run controls |
| Configuration | Single entry or double entry / Thru Car |
*Local code requirements may limit this to 500 lbs (227kg)
Stiltz Trio Wheelchair Elevator Range

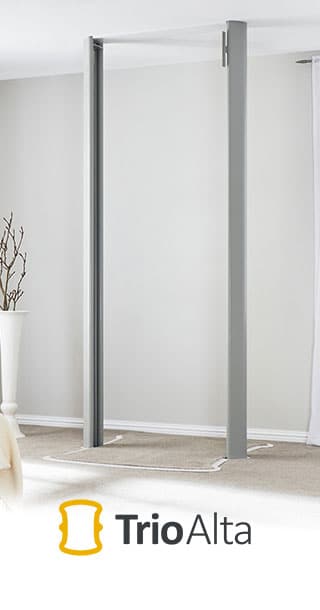

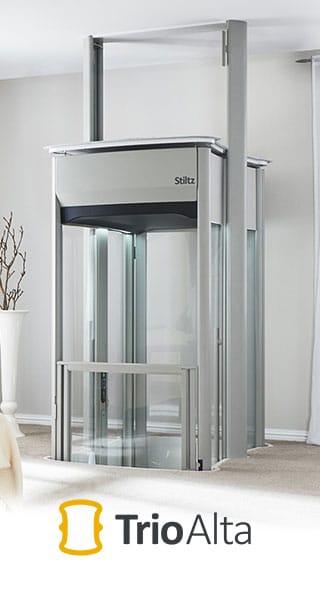

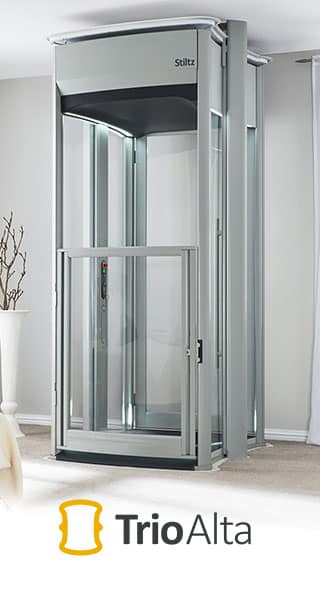

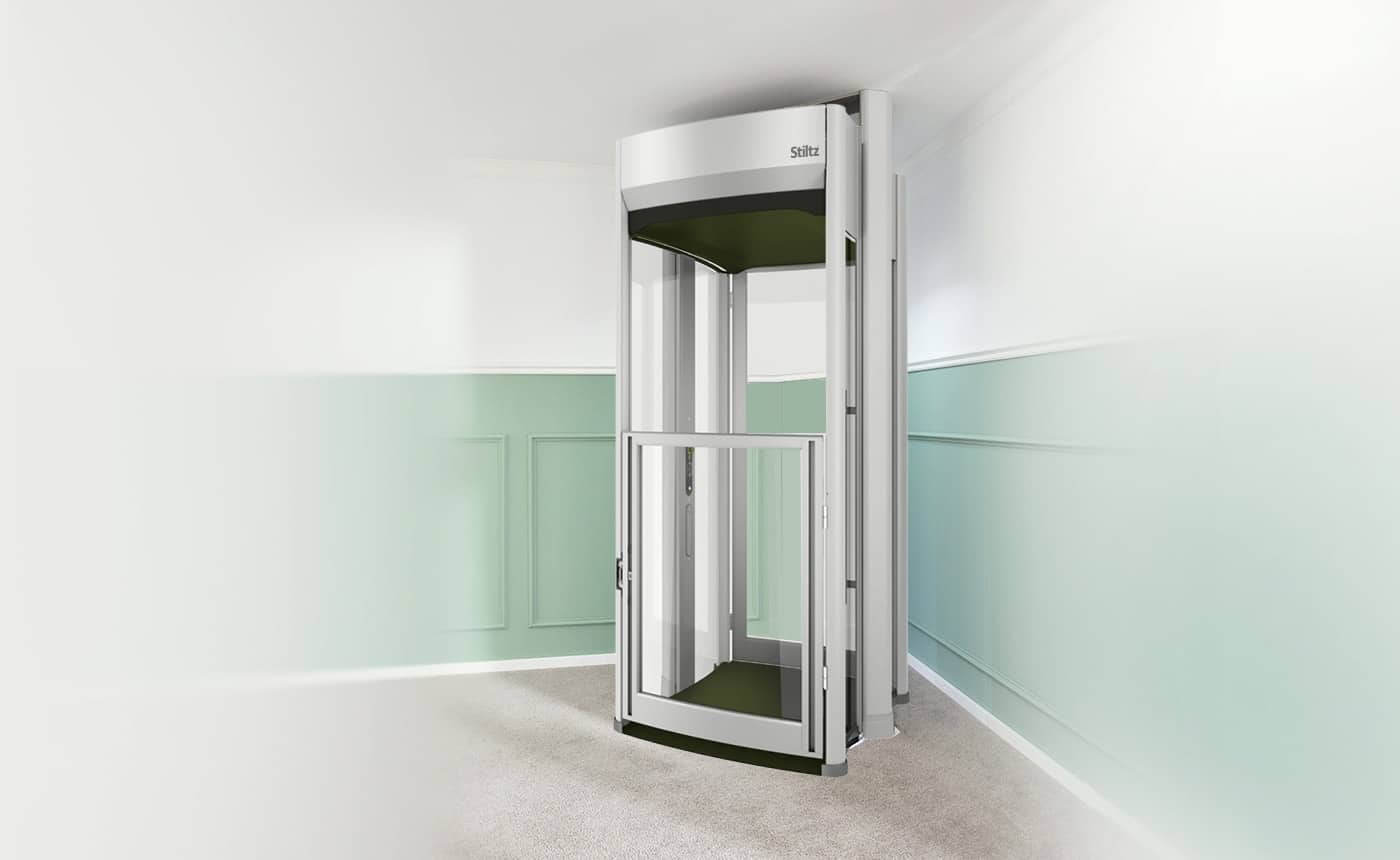

Stiltz Trio Alta is a spacious and luxurious wheelchair-accessible home elevator designed to carry a full-sized wheelchair or three people. The combination of style and luxury has been perfectly balanced and the elevator has clear sides which enables it to blend seamlessly into the home and to make it even less intrusive the rails are cleverly and discreetly recessed behind the slightly wider entrance/exit.
Stiltz Trio Thru Car allows users to enter and exit from both sides of the elevator. This is made possible by the unique Stiltz dual rail technology. There is no other wheelchair home elevator of this kind on the market that is capable of different entry and exit points on different floors. It offers all the same features as the Trio Alta.
|
||
| Look / Body: | Modern styling with clear side panels; recessed rails at entrance | Modern styling with clear side panels; recessed rails at entrance |
| Entry: | Single-door | Two-sided (enter one side, exit the other) |
| Visability: | Open, blends into decor | Open, clear sides like Alta |
| Color Options: | Includes Classic White option (plus standard finishes) | Standard finishes |
| Best Known For: | Wheelchair users wanting a spacious, contemporary | Tight landings/hallways needing straigh-through access or limited turning space |
